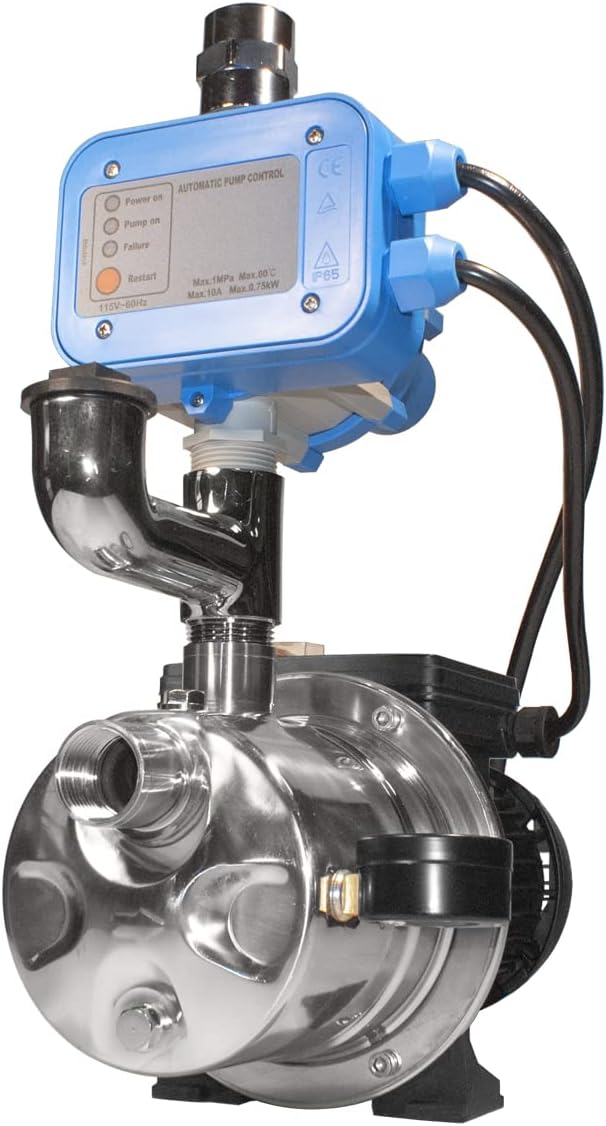

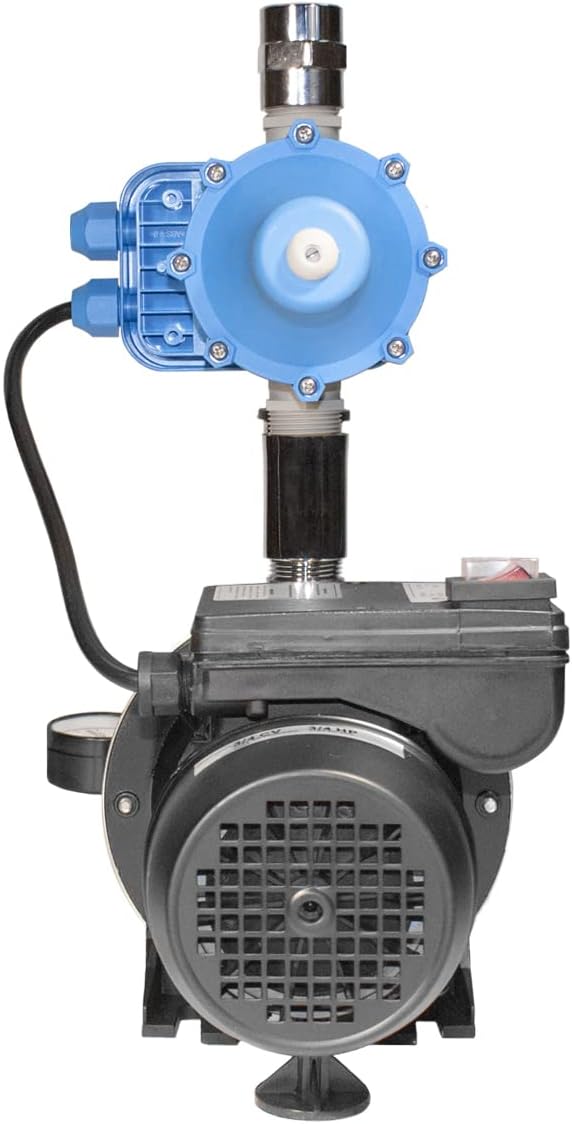

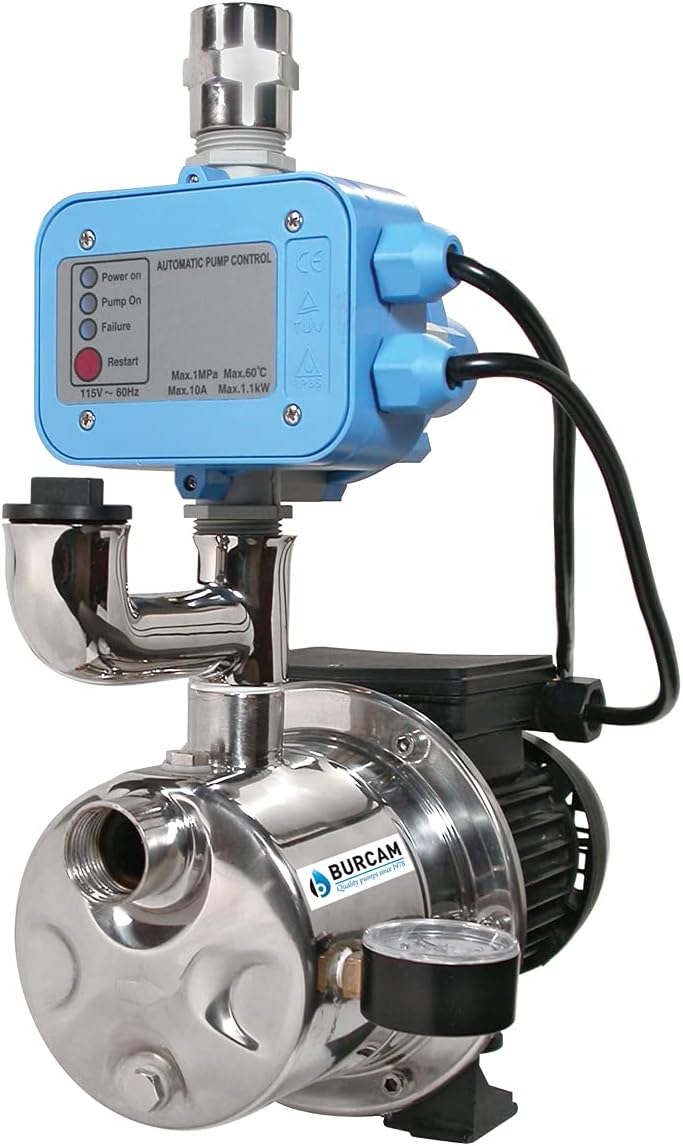

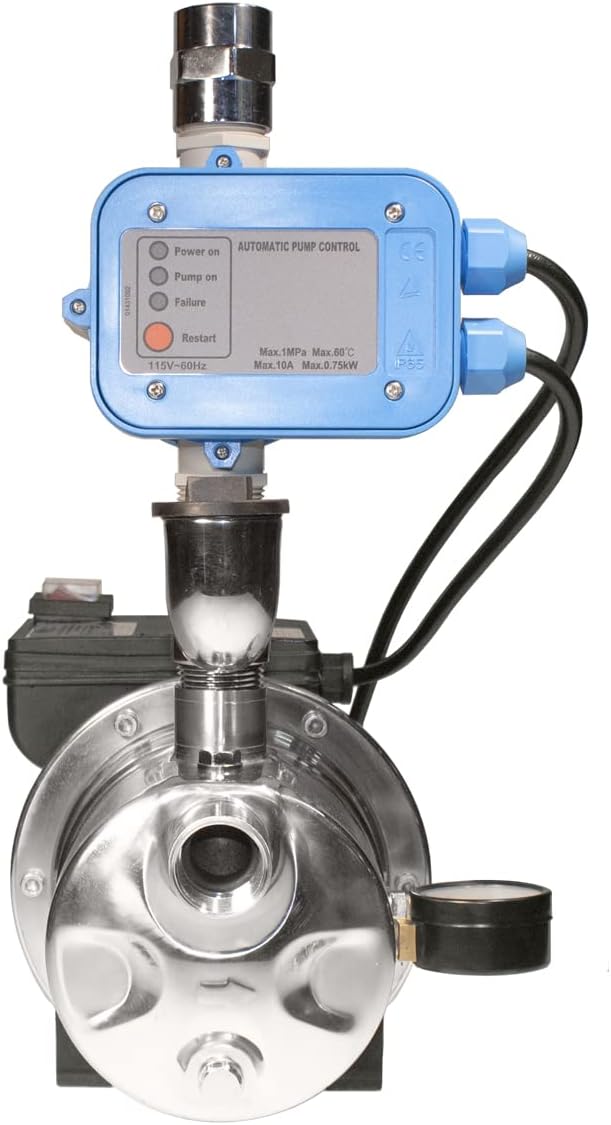

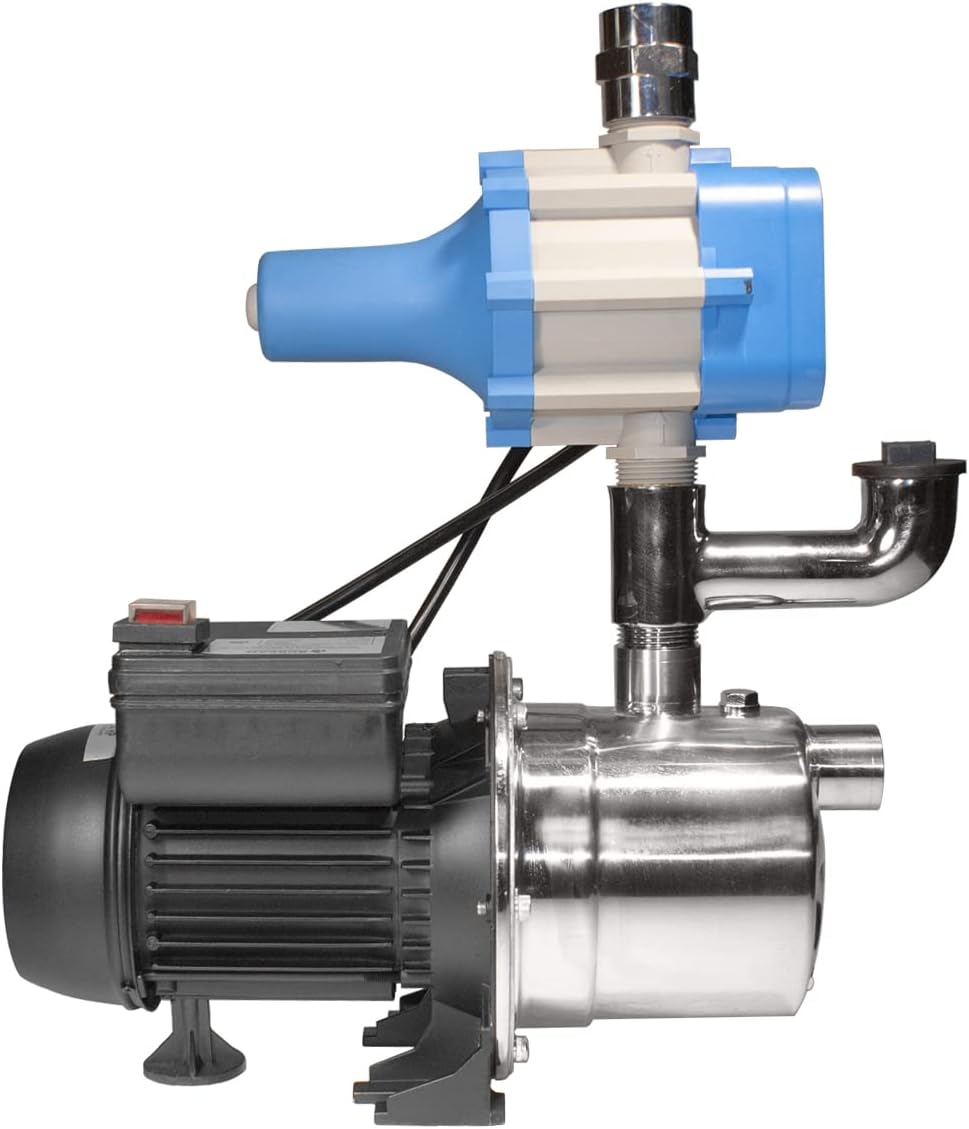

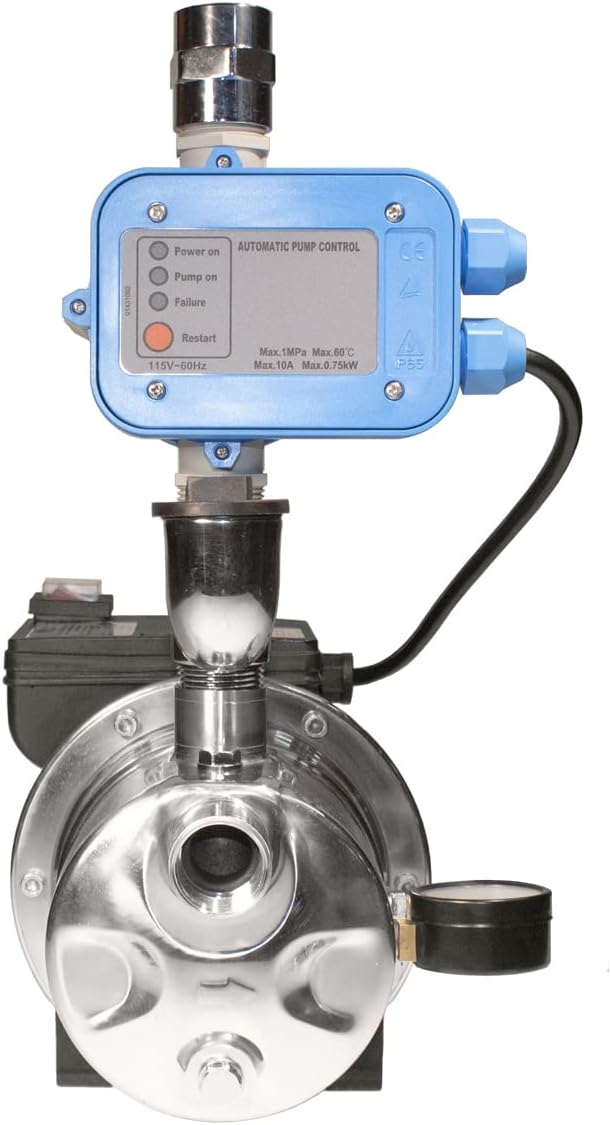

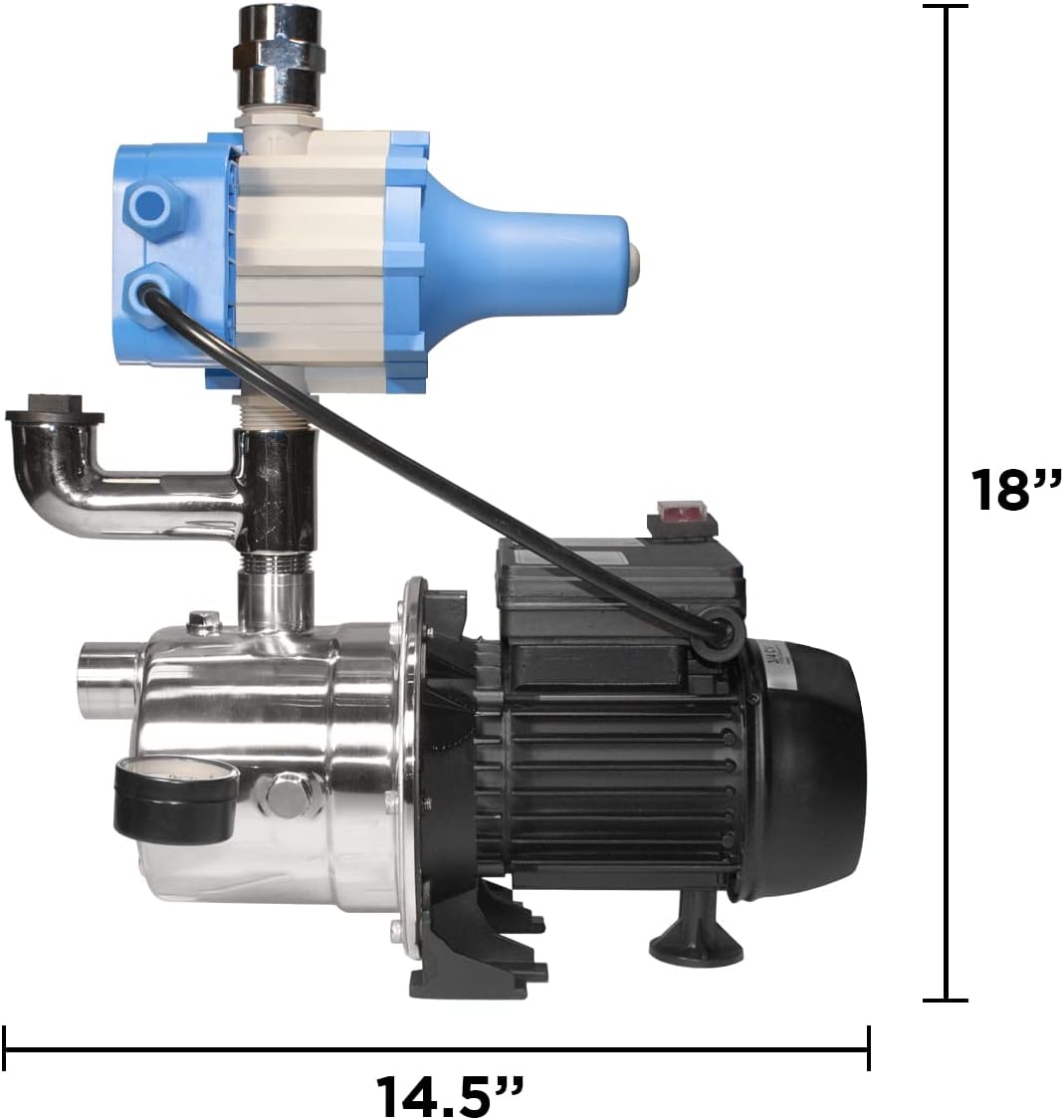

Stainless Steel Jet Pump System Q196
Stainless Steel Jet Pump System Q196
SHALLOW WELL JET PUMP: Designed for shallow wells up to 25 feet deep or to boost municipal water pressure.
STAINLESS STEEL JET PUMP BODY: Drink cleaner water with a corrosion resistant stainless steel pump body.
CONSTANT PRESSURE: State of the art electronic control system for constant pressure. Eliminates pressure fluctuations.
STATE OF THE ART ELECTRONIC CONTROL: Electronic control eliminates need for pressure switch or pressure tank.
EASY INSTALLATION: Easy plug-in installation 115volts, no hard wiring required.
AUTOMATIC OPERATION: the electronic control prevents the pump from running out of water by shutting off in case of low water levels.
BURCAM 506532SSZN 3/4 horsepower, 115 volts, 60 powerful dual application system: can be used as a shallow well jet pump with an electronic control or to boost water pressure. No need for a pressure switch and pressure tank. The electronic control prevents the pump from running dry. Eliminate rust and drink cleaner water with a stainless steel pump. Recommended for residential use in homes, cottages or farms. Maximum vertical lift of 25'. Built-in ejector. High performance impeller. Totally enclosed fan cooled motor, bearing to bearing, powered by a full-time run capacitor to eliminate starting wear vs regular motors. Thermal and overload protection. Large stainless steel corrosion-resistant body, easy to prime. Built for an intermittent or a continuous use. Easy to install, comes with 10-ft power cord. Maximum pressure of 65 PSI. 1' NPT suction and discharge. 0 - 100 PSI pressure gauge. Capacity at 30 PSI: 897 US GPH/5’; 749 US GPH/10’; 638 US GPH/15’; 555 US GPH/20’; 472 US GPH/25’. Not recommended for sand point applications. In a pressure boosting application, a water pressure regulator must be installed before the inlet of the pump if the source pressure exceeds 25 PSI.
